Pendulum Suspension Spring for Floor Clocks, Wall Clocks and Regulators

Suspension spring for floor-standing clocks, large clocks, wall clocks

Scope of delivery:

Suspension spring for floor clocks, large clocks and wall clocks, available as a set of types A, B, C and D with different pin distances and widths.

Pendulum clock suspension spring in a set, depending on your choice:

1. The values in the drop-down menu stand for:

Width (mm) – Overall length (mm) – Distance pin to hole (center to center) (mm)

Suspension spring assortment: 8-piece set: 2x type (A+B+C+D)

Dimensions: as listed below, but these are only approximate values, as they vary from one spring to another:

Type Pin distance (mm) Blade thickness (mm) Width (mm)

Type A 10.5 – 11.0 8.4 – 8.5

Type B 11.3 – 11.8 8.4 – 8.5

Type C 13.0 – 13.5 0.06 – 0.07 8.4 – 8.5

Type D 14.0 – 14.5 0.06 – 0.07 12.4 – 12.5

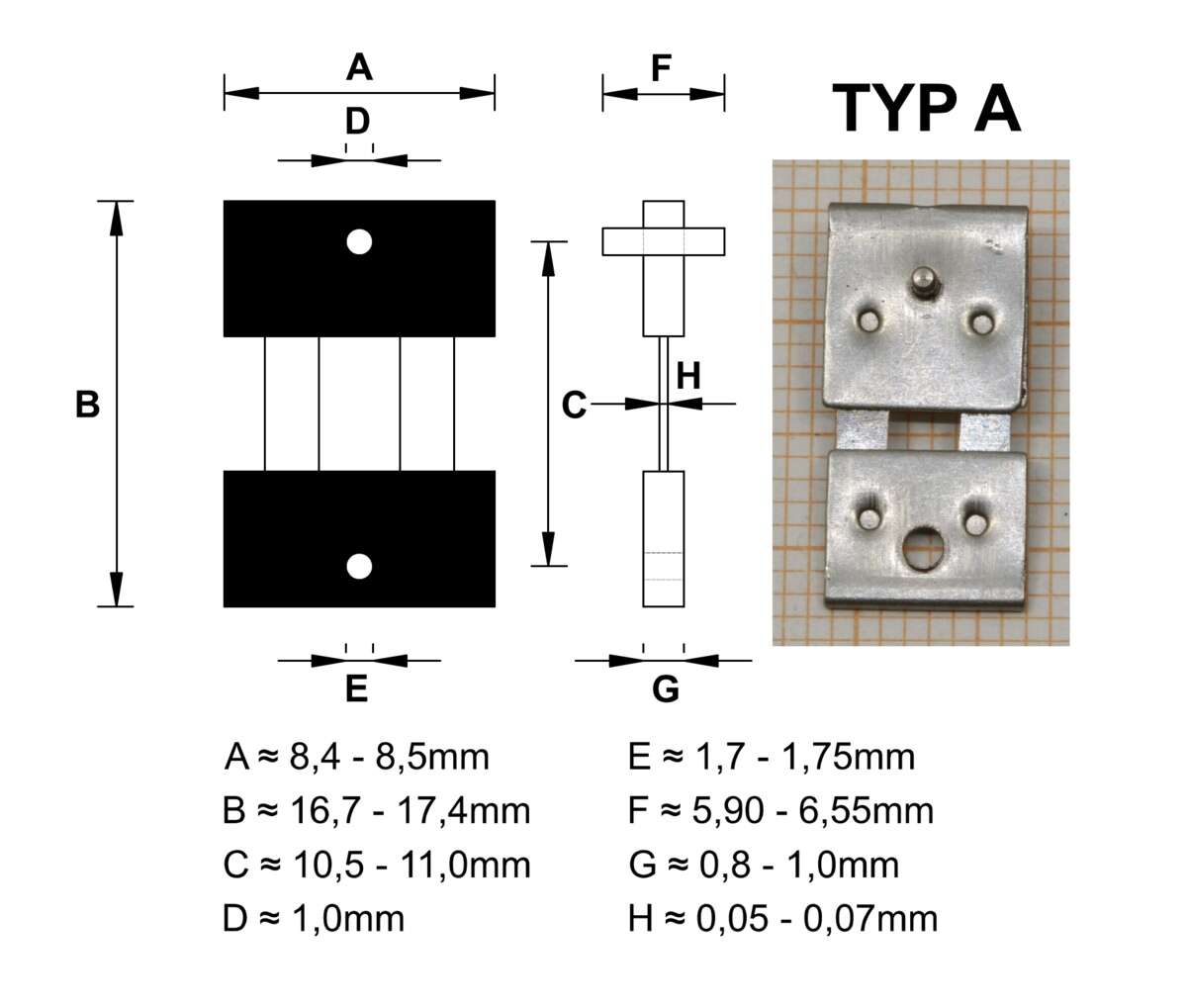

Metal suspension spring type A:

All values are approx. values, as they can vary greatly from one spring to another.

Quality and workmanship as shown in the pictures, average to good. Pictures are examples.

Dimensions: as listed below, but these are only guide values, as they can vary greatly from one to another:

Pin distance: between 10.50 – 11.0 mm (mostly around 10.7 mm)

Blade thickness:

Pin length: between 5.90 – 6.55 mm

Pin diameter: 1.0 – 1.05 mm

Hole diameter: 1.70 – 1.75 mm

Width: 8.4 – 8.5 mm

Overall length: 16.7 – 17.4 mm

Total thickness: 0.8 to 1 mm

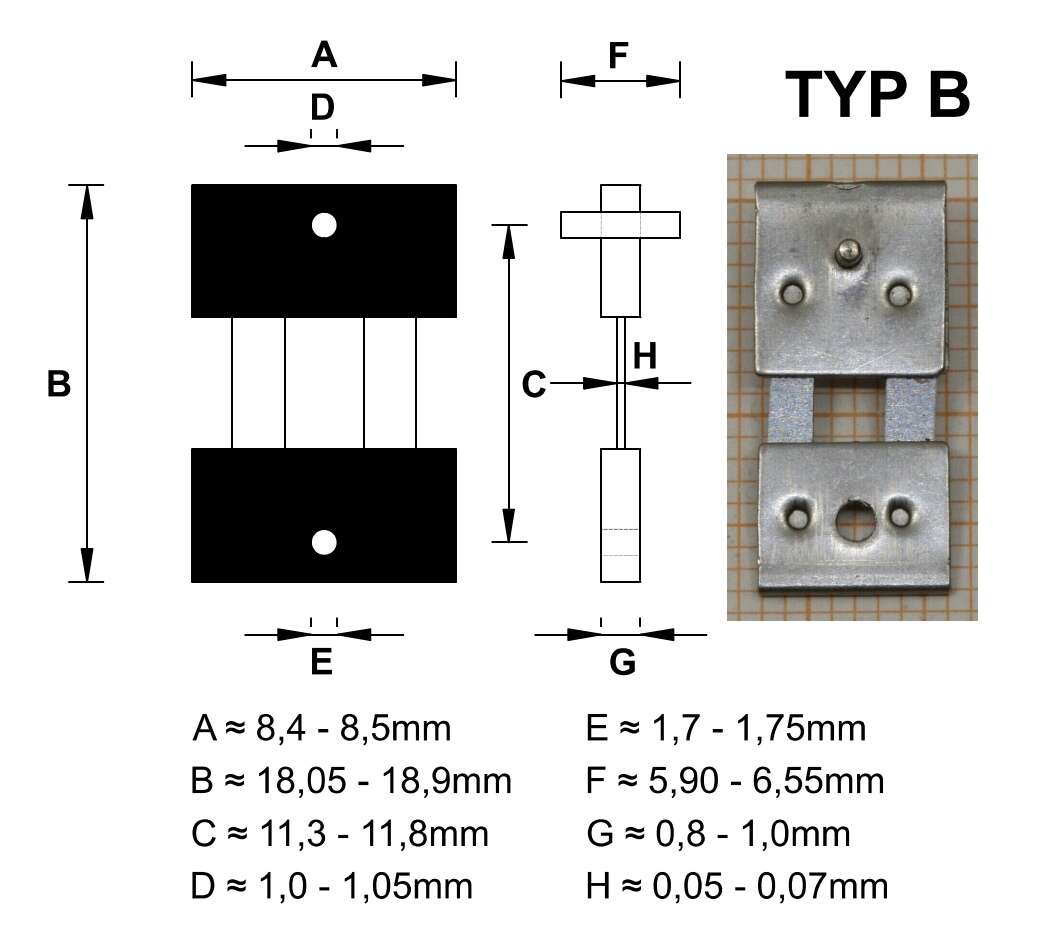

Metal suspension spring type B:

All values are approx. values, as they can vary greatly from one spring to another.

Quality and workmanship as shown in the pictures, average to good. Pictures are examples.

Pin distance: between 11.3 – 11.8 mm (mostly around 11.30 mm)

Blade thickness:

Pin length: between 5.90 – 6.55 mm

Pin diameter: 1.0 – 1.05 mm

Hole diameter: 1.70 – 1.75 mm

Width: 8.4 – 8.5 mm

Overall length: 18.05 – 18.9 mm

Total thickness: 0.8 to 1 mm

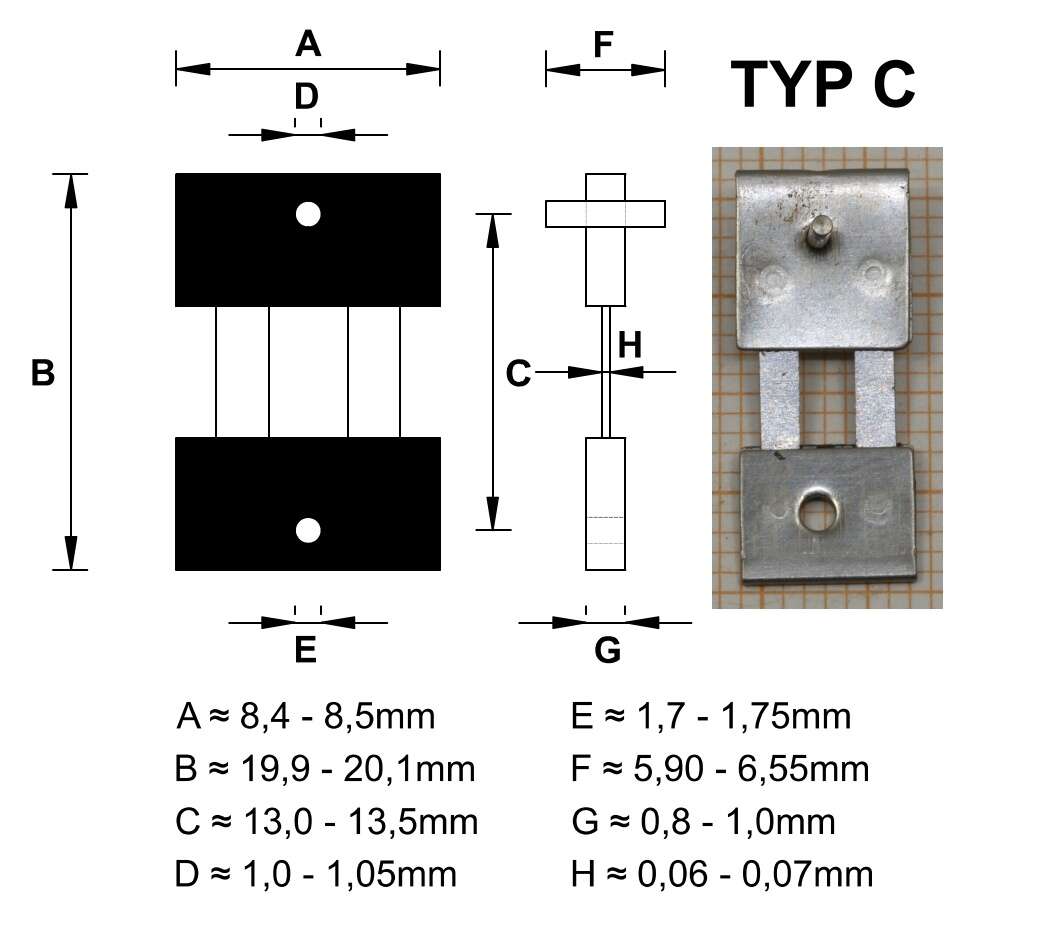

Metal suspension spring type C:

All values are approx. values, as they can vary greatly from one spring to another.

Quality and workmanship as shown in the pictures, average to good. Pictures are examples.

Pin distance: between 13.0 – 13.5 mm (mostly around 13.1 mm)

Blade thickness: between 0.06 – 0.07 mm

Pin length: between 5.90 – 6.55 mm

Pin diameter: 1.0 – 1.05 mm

Hole diameter: 1.70 – 1.75 mm

Width: 8.4 – 8.5 mm

Overall length: 19.9 – 20.1 mm

Total thickness: 0.8 to 1 mm

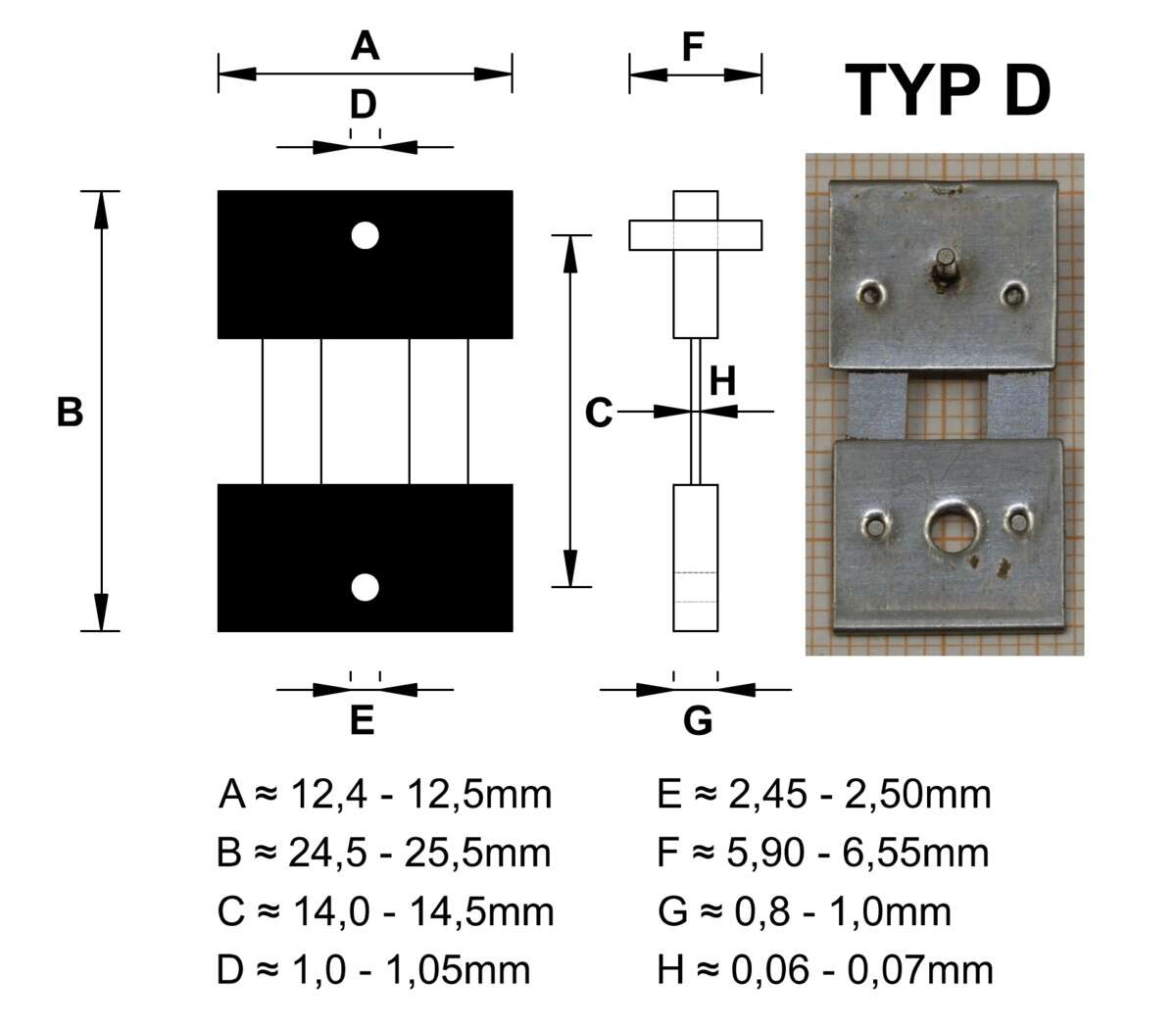

Metal suspension spring type D:

All values are approx. values, as they can vary greatly from one spring to another.

Quality and workmanship as shown in the pictures, average to good. Pictures are examples.

Pin distance: between 14.0 – 14.5 mm (mostly around 14.10 mm)

Blade thickness: 0.06 to 0.07 mm

Pin length: between 5.90 – 6.55 mm

Pin diameter: 1.0 – 1.05 mm

Hole diameter: 2.45 – 2.50 mm

Width: 12.4 – 12.5 mm

Overall length: 24.5 – 25.5 mm

Total thickness: 0.8 to 1 mm
