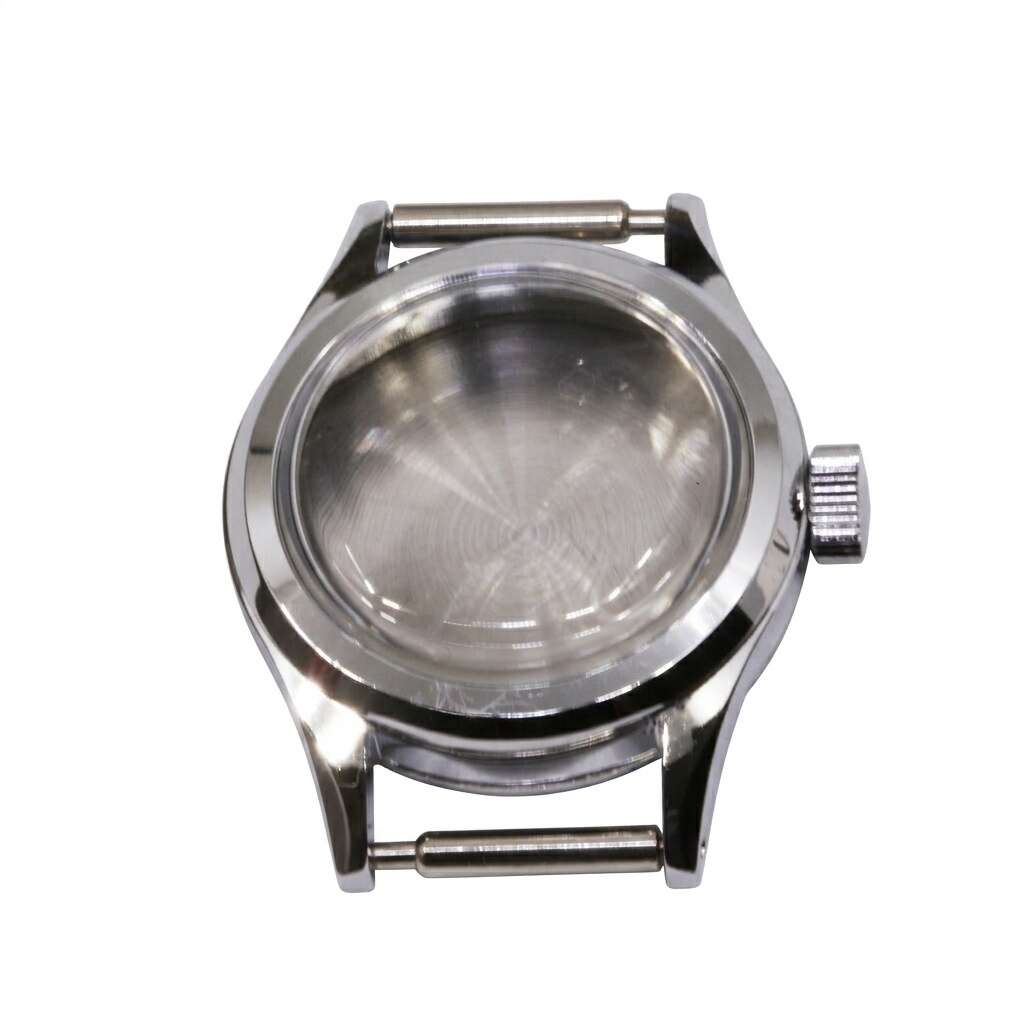

Watch Case for ETA E61.031, F03.105, 956.032 – NOS – view 2

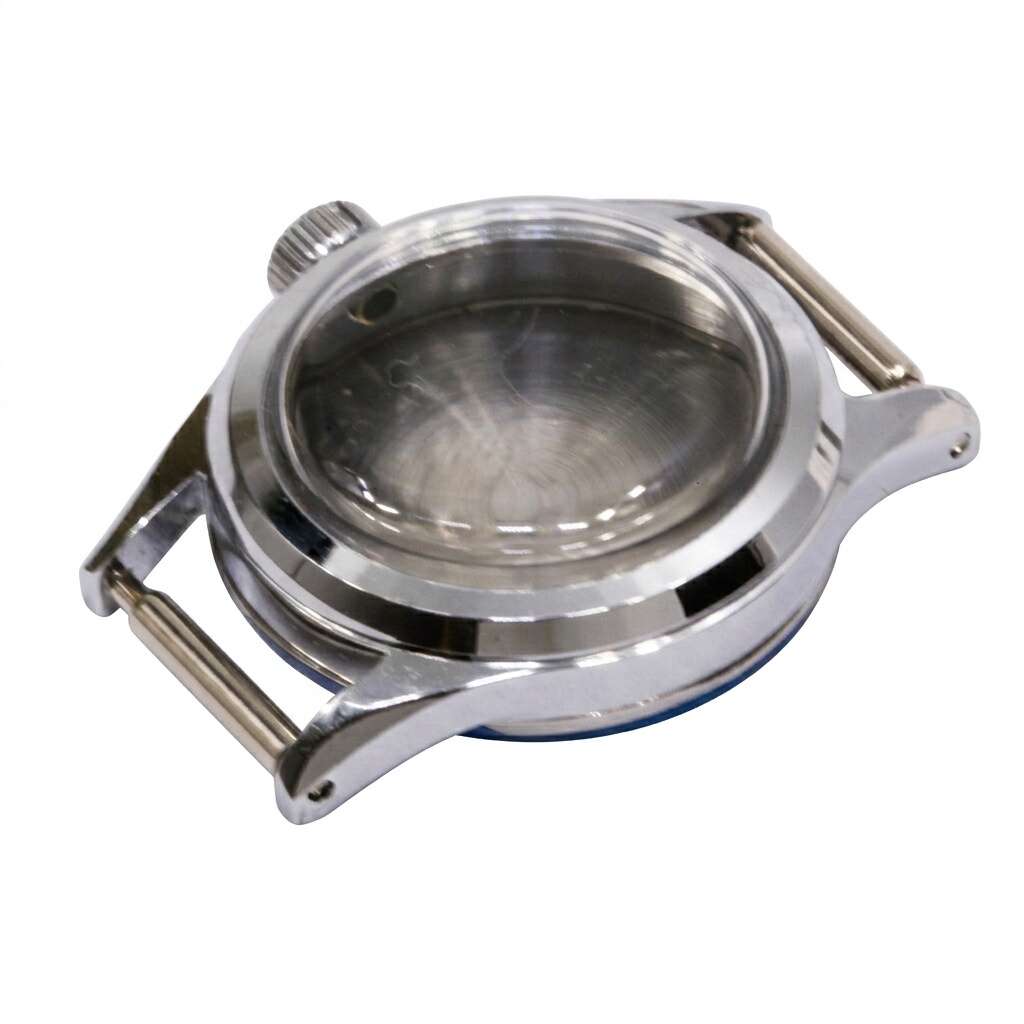

Watch Case for ETA E61.031, F03.105, 956.032 – NOS – view 3

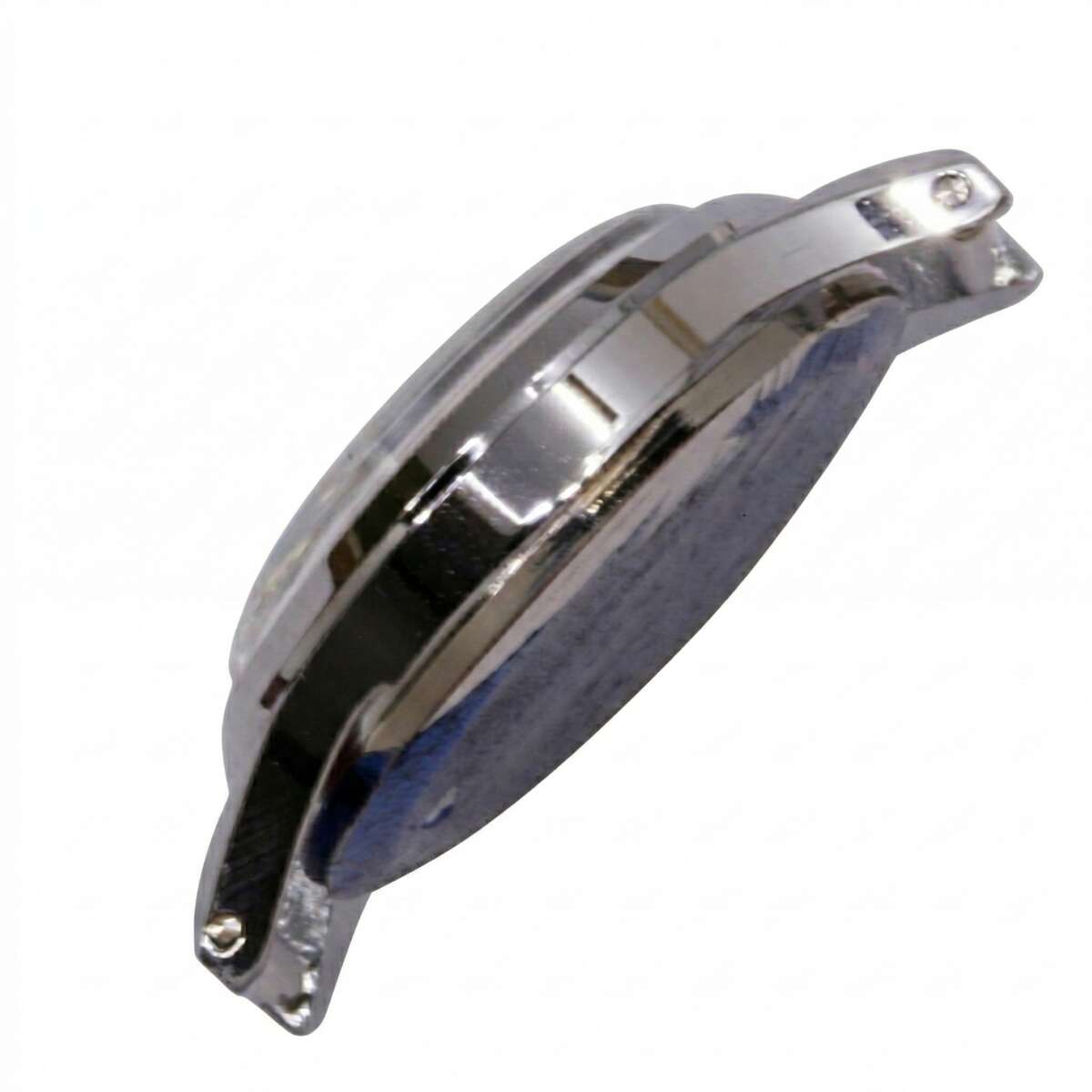

Watch Case for ETA E61.031, F03.105, 956.032 – NOS – view 4

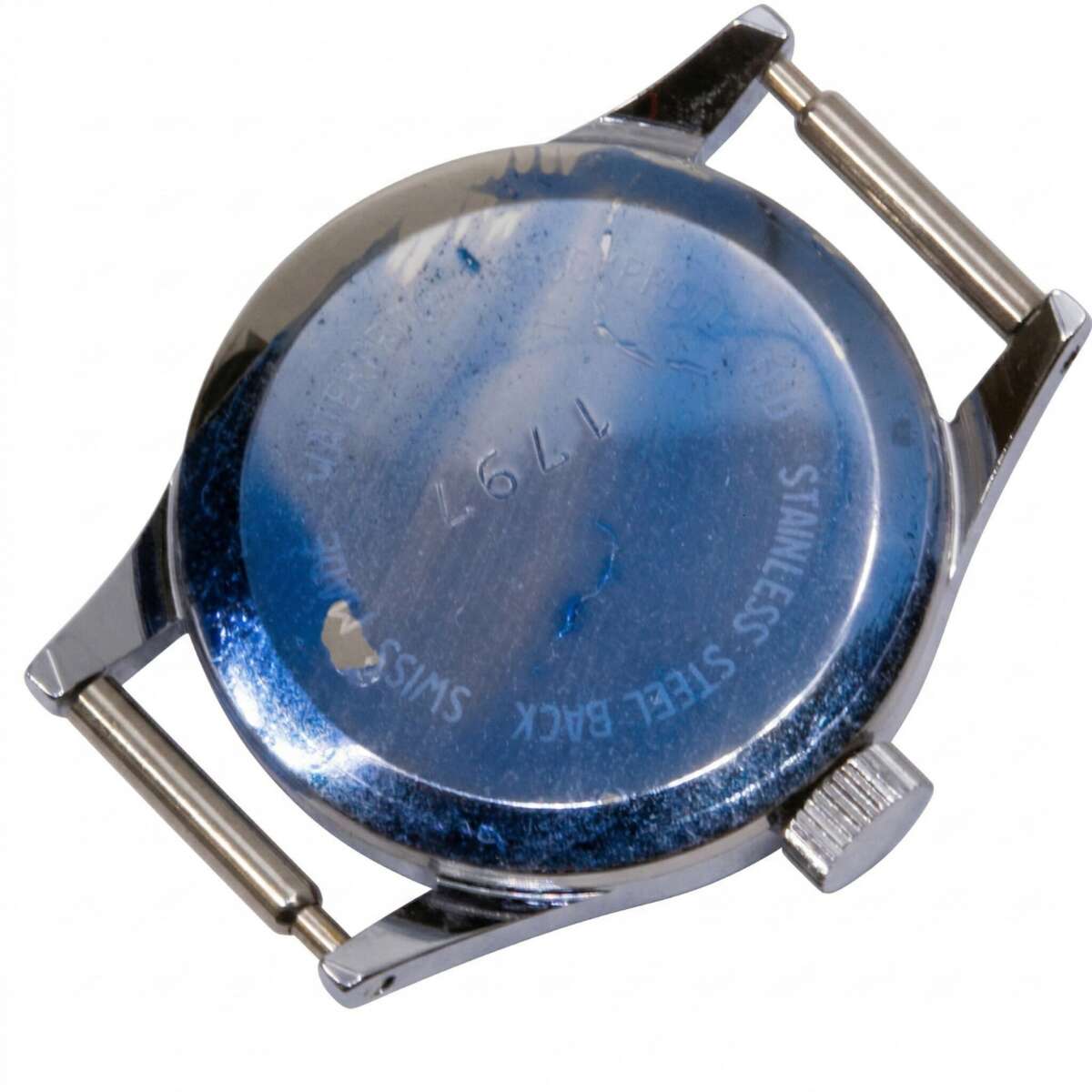

Watch Case for ETA E61.031, F03.105, 956.032 – NOS – view 5

Watch Case for ETA E61.031, F03.105, 956.032, Polished – Swiss NOS

44,00 € – 125,00 € incl. VAT *

plus shipping costs

Vintage Swiss watch case ETA E61.031 (NOS) with a round, polished profile. Includes crown and case back with gasket. Compatible with ETA F03.105 and 956.032 calibers.

Anzahl der Gehäuse

Clear

SKU: 336471987113 Category: ETA

📋 Product details

Scope of delivery

Watch case for ETA E61.031 and other movements without movement holding ring (round, polished) + crown + case back with gasket

Depending on your selection: 1×, 3× or 5x

Description

NOS vintage Swiss ladies’ watch case, round with a flat profile. New Old Stock – unused, directly from old watchmaker or trade stock. These cases have never been worn or fitted with a movement.

The case surface is high-gloss polished. However, minimal imperfections, small surface marks or slight unevenness compared with today’s precision manufacturing standards may be present. This is completely normal and to be expected with authentic vintage material – not a defect.

The press-fit case back bears the engraving: STAINLESS STEEL BACK · SWISS MADE · WATERPROOF · SHOCKPROTECTED as well as a reference number such as 1682, 1797 … or similar. The crystal is a domed acrylic crystal. The push-pull crown (approx. Ø 4.45 mm) is located at 3 o’clock. The case back has a factory-applied protective lacquer – typical of how cases were stored at the time. It can be removed easily by light polishing. Chemical removal may also be possible but has not been tested.

Dimensions

Dimension	Value
Outside diameter	22.30 mm
Total height incl. crystal	8.00 mm
Movement diameter (opening)	18.90 mm
Inner depth of case	3.70 mm total – approx. 3.30 mm available for the movement (after inserting the dial)
Winding stem height T (dial seat to center of crown tube)	approx. 1.00 mm
Lug width	11 mm
Lug-to-lug distance	29.45 mm
Crown diameter / thread size	4.45 mm, push-pull / 0.90 mm
Case back	Press-fit case back
Crystal	Domed acrylic crystal
Finish	Polished
Case material	Unknown (not tested)
Case back material	Stainless steel

All dimensions were measured manually and may have a tolerance of ±0.10 mm. Compatibility information is provided to the best of our knowledge. Please check before installation.

Compatible movements (without date)

Due to the movement diameter of 18.90 mm, a spacer ring is required for all movements listed below. The ETA E61 family is the preferred choice, as it was designed specifically for this diameter range and needs only a minimal ring.

Note: ETA specifies two diameter values. Ø nominal is the official caliber size for movement identification (e.g. 18.20 mm = “8¼”’ family”). Ø real is the actual physical outside diameter of the movement – this value is used to calculate the required wall thickness of the spacer ring.

Caliber	Ø nominal mm	Ø real mm	Height mm	Stem height T mm	Hands	Spacer ring
ETA E61.031 ★	18.20	18.60	1.95	1.00	2 (h/m)	required
ETA E61.501 ★	18.20	18.60	1.95	1.00	3 (h/m/small sec. at 6)	required
ETA E61.101 ★	18.20	18.60	1.95	1.00	3 (h/m/center sec.)	required
ETA F03.105 *	17.20	17.50	2.50	1.00	3 (h/m/center sec.)	required
ETA 956.032 *	17.20	17.50	2.50	1.00	2 (h/m)	required

★ Spacer ring not included in the scope of delivery. Stem height T confirmed per ETA data sheet – please check before installation.
