Sonceboz ES 54 ? (not sure it could be also ES 55)

Scope of delivery:

1x Sonceboz ES 54 ( Kienzle 053010 )?

Handaufzugswerk

Lagerware, da es fast 50 Jahre alt und nicht vollständig ist, wird es als defekt angeboten

Durchmesser: ca. 27,0mm (12“`)

Höhe: 4,2mm

Stiftankerhemmung

17 Steine / 21600 A/h / von 70`er

Es wird wie abgebildet in original Plastikbox geliefert / Es fehlen Stundenrad, Minutenrad und Wechselrad

Als Ersatzwerk kaum noch zu finden

Da das Werk fast 50 Jahre alt ist vor der Installation muss eine Revision vom Uhrmacher durchgeführt werden

Einige nützliche Informationen, die auf ranfft.de zu finden sind, haben wir unten zusammengefasst jedoch ohne Gewähr.

hand-winding movement

New Old Stock, since it is almost 50 years old and not complete, it is offered as defective

Diameter: appr. 27,0mm (12“`)

High: 4,2mm

Shock Protected

17 Jewels, 21600 A/h, from 70’s

almost impossible to find

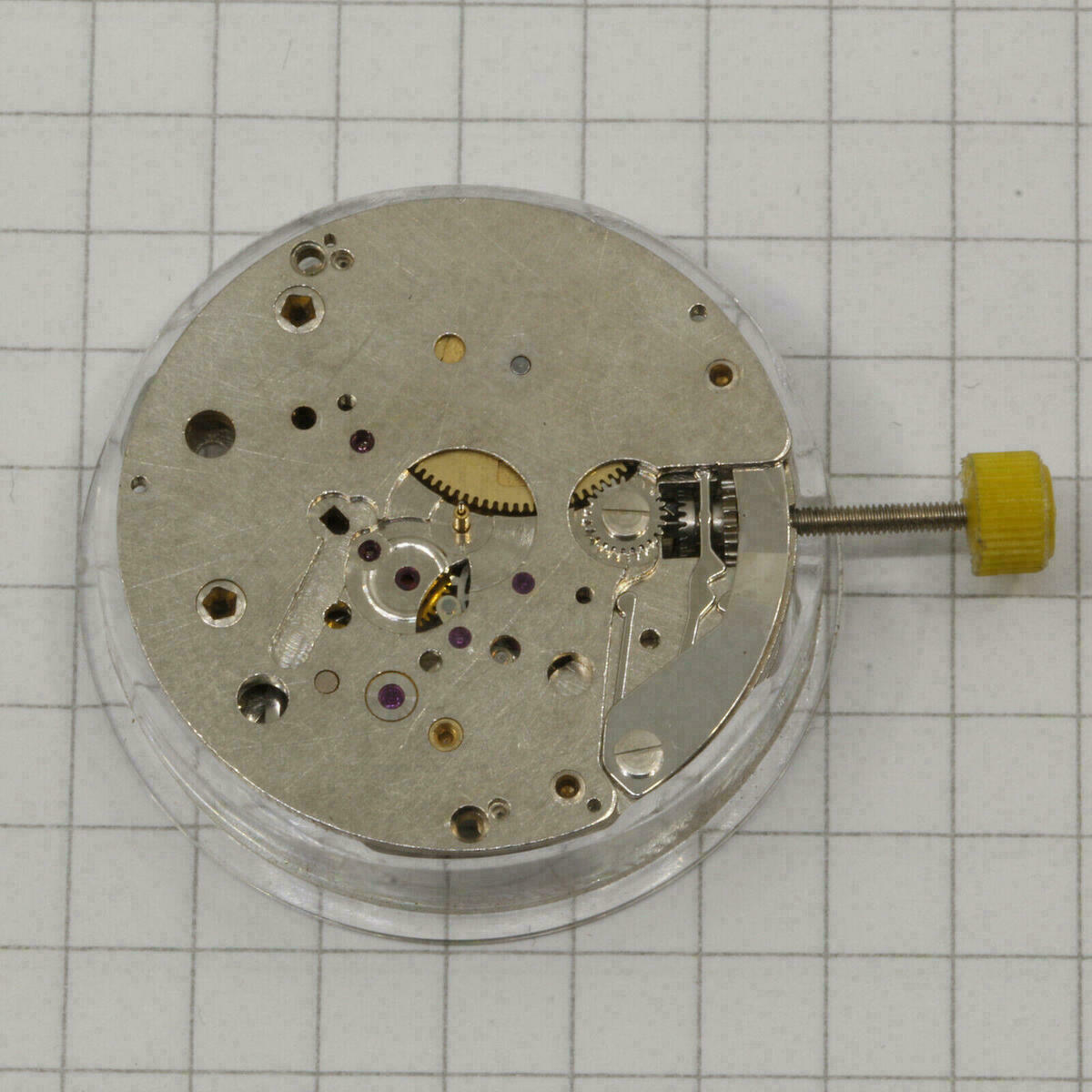

it comes in original plastic box, as you can see in the photos (without hour wheel, minute wheel and canon pinion)

Because the movement almost 50 years old is, it should be serviced before installation.



some useful information that can be found on ranfft.de below, but without guarantee of correctness:

Dm= 26.6mm, Do= 27.0 … 27.1mm

F= 0.65mm

T= 1.9mm

Do outer diameter, thus the largest. Most movements have a flange a little bigger than Dm, to rest on the case band or mounting frame.

Dm mounting diameter. With this diameter the movement fits into the aperture of the case or mounting frame

F mounting height, distance between dial plane* and mounting flange.

T stem height, distance between dial plane* and stem center

*) Movements with display discs on the dial side (e.g. calendar) have occasionally no dial support. In this case the surface of the discs is taken as reference plane for H, F, and T. If a not permanently fixed dial spacer is supplied with the movement. its additional height is mentioned.

Hands

1.50 x 0.90 x 0.20mm

Due to the long storage time, small traces may have formed on the movement, but this has no effect on the function. Because the movement is more than 40 years old, it should be cleaned or at least oiled before installation, a fine adjustment might be necessary.

Import duties, taxes and charges are not included in the item price. These charges are the buyer’s responsibility. Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.
