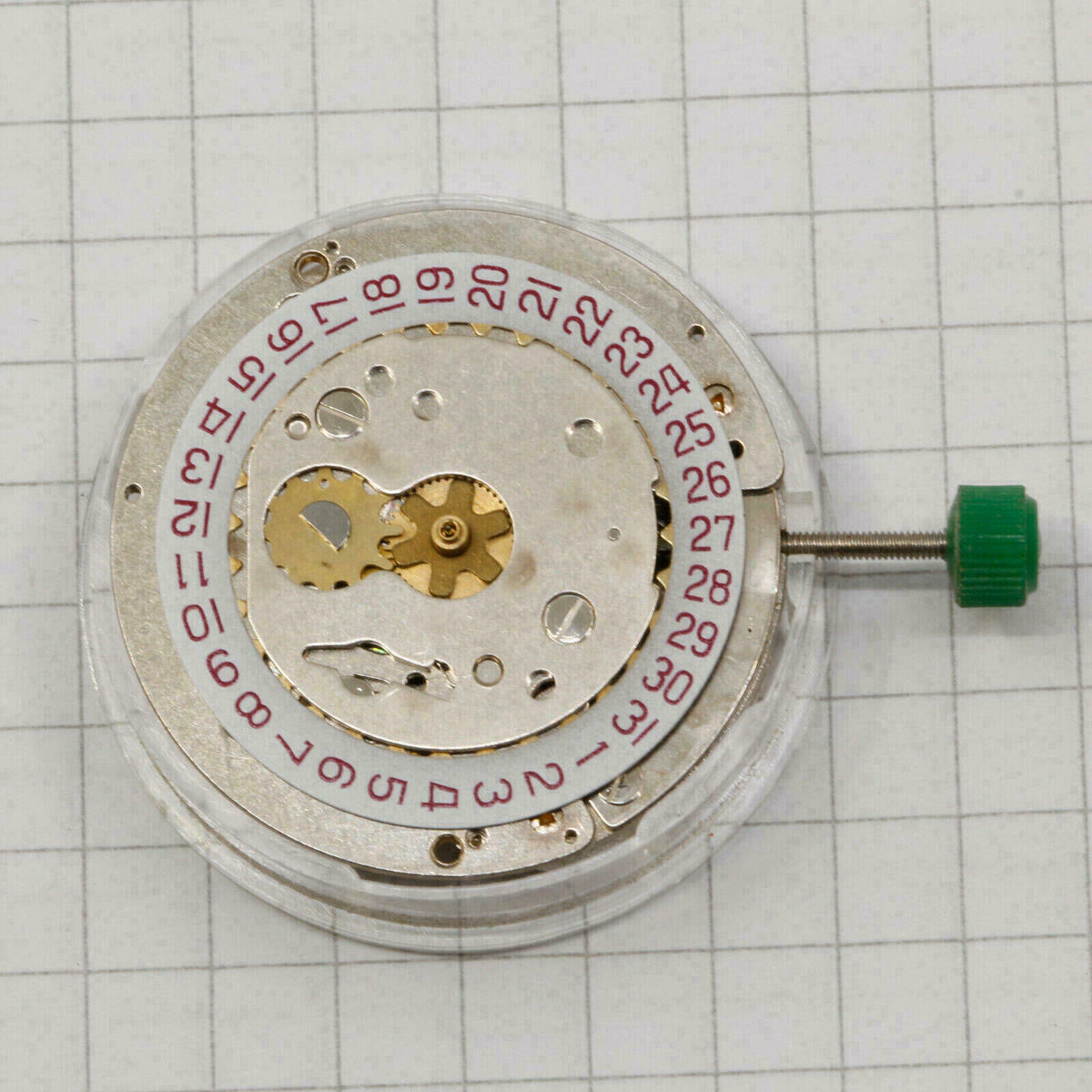

Sonceboz ES95

Scope of delivery:

handwinding movement

It starts up as soon as you wind it up

Because the movement almost 50 years old is, it should be serviced before installation

New Old Stock, since it is almost 50 years old, it is offered as defective

Diameter: appr. 27,0mm (12“`)

High: 4,9mm (from bottom to the top of the date dial gurad)

Shock Protected

17 Jewels, 21’600 A/h, from 70’s

almost impossible to find

it comes in original plastic box

Etor watch is not included it is for demo purposes only

some useful information that can be found on ranfft.de below, but without guarantee of correctness:

Dm= 26.6mm, Do= 27.0mm

F= 0.65mm

T= 1.9mm

Do outer diameter, thus the largest. Most movements have a flange a little bigger than Dm, to rest on the case band or mounting frame.

Dm mounting diameter. With this diameter the movement fits into the aperture of the case or mounting frame

F mounting height, distance between dial plane* and mounting flange.

T stem height, distance between dial plane* and stem center

*) Movements with display discs on the dial side (e.g. calendar) have occasionally no dial support.

In this case the surface of the discs is taken as reference plane for H, F, and T. If a not permanently fixed dial spacer is supplied with the movement.

its additional height is mentioned.

Hands

1.50 x 0.90 x 0.20mm
