Watch Movement Handwinding mechanical Sonceboz ES 55 NOS Uhrwerk Voumard #4

Sonceboz ES 55 ?
(not sure it could be also ES 54)

Lieferumfang: 1x Sonceboz ES 55 (ES54)

Handaufzugswerk

Durchmesser: ca. 27,0mm (12„`)

Höhe: 4,9mm

17 Steine / 21600 A/h / aus 70`er

Als Ersatzwerk kaum noch zu finden

Scope of delivery: 1x Sonceboz ES 55

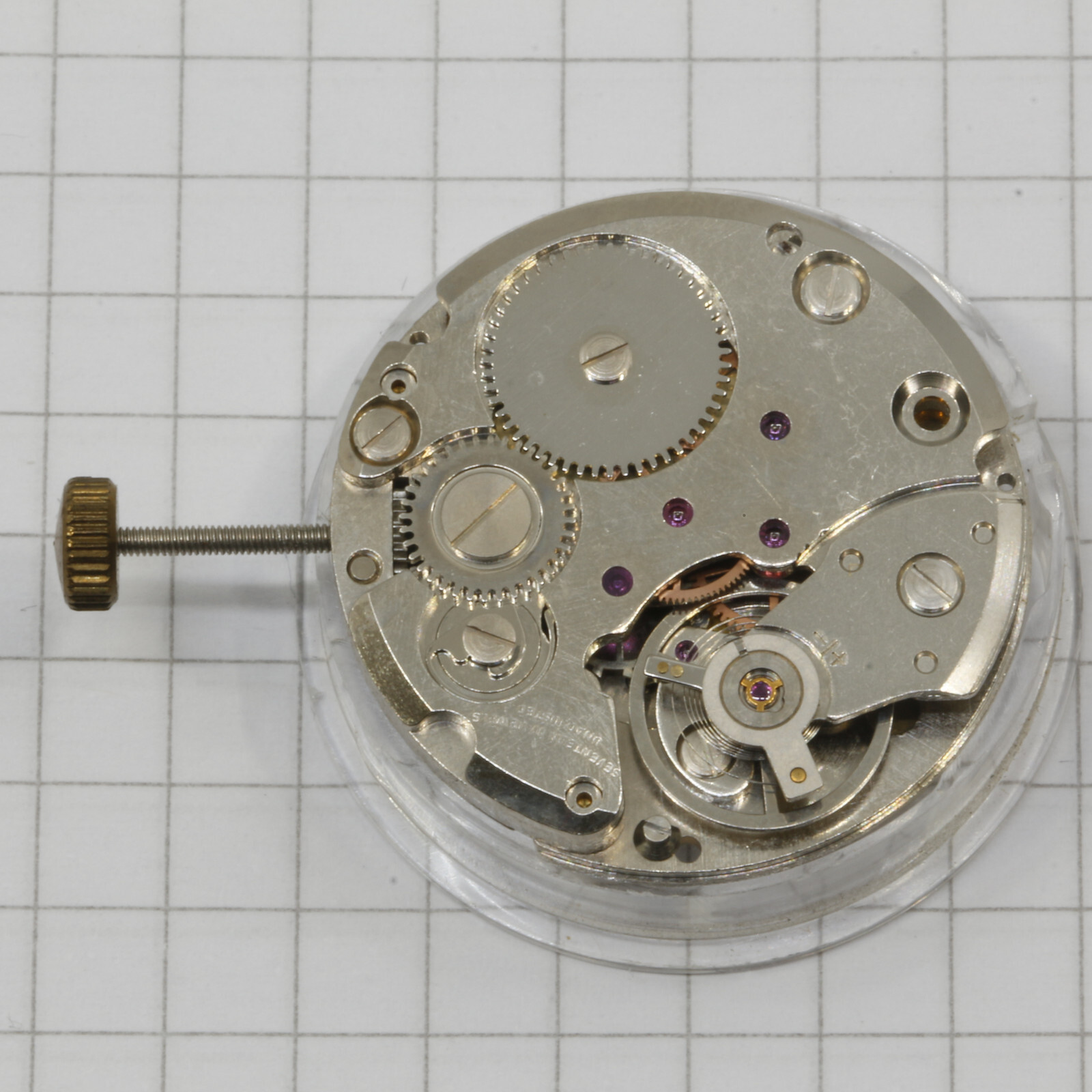

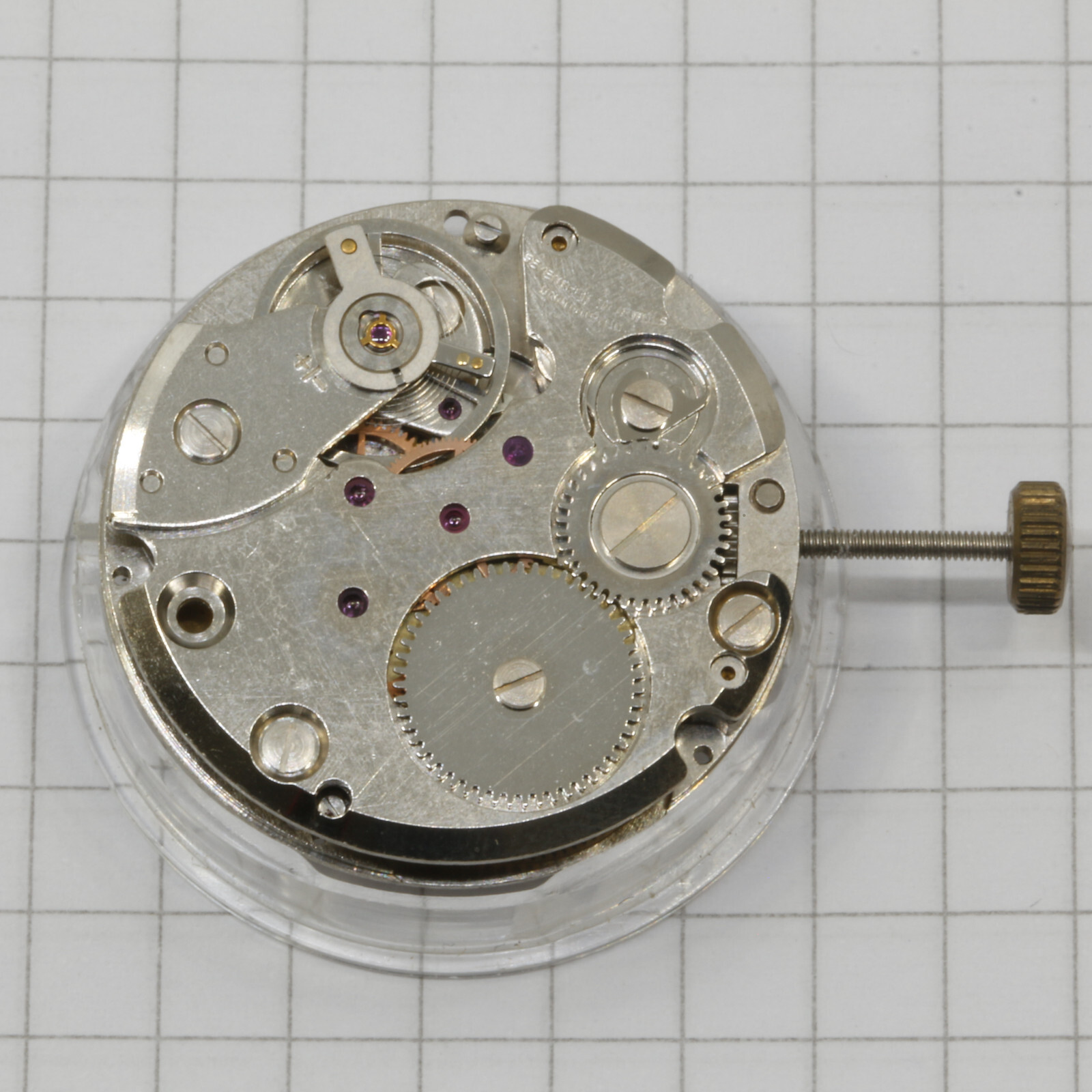

hand-winding movement

New Old Stock, working well,

Diameter: appr. 27,0mm (12„`)

H: 4,9mm (from bottom to the top of the date dial guard)

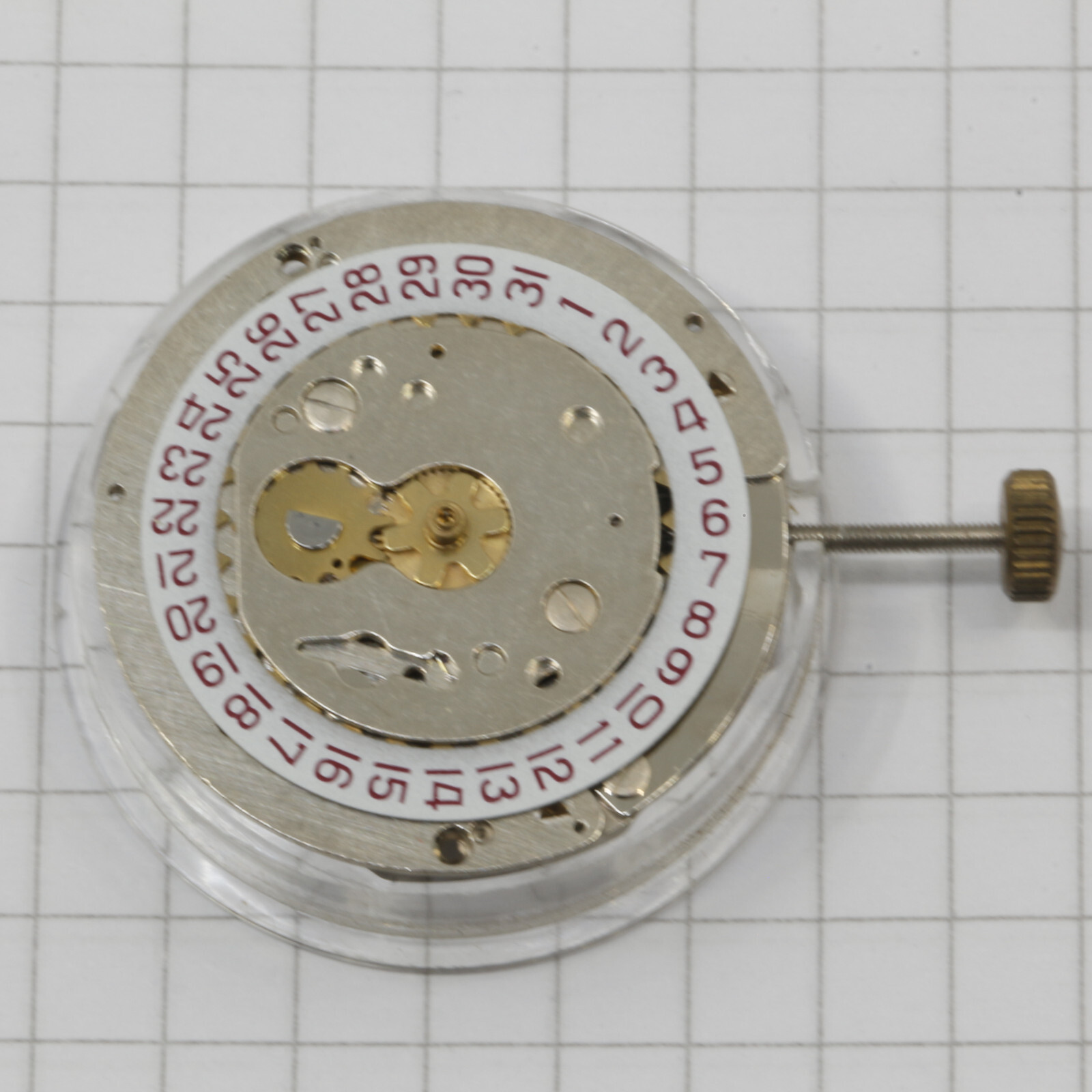

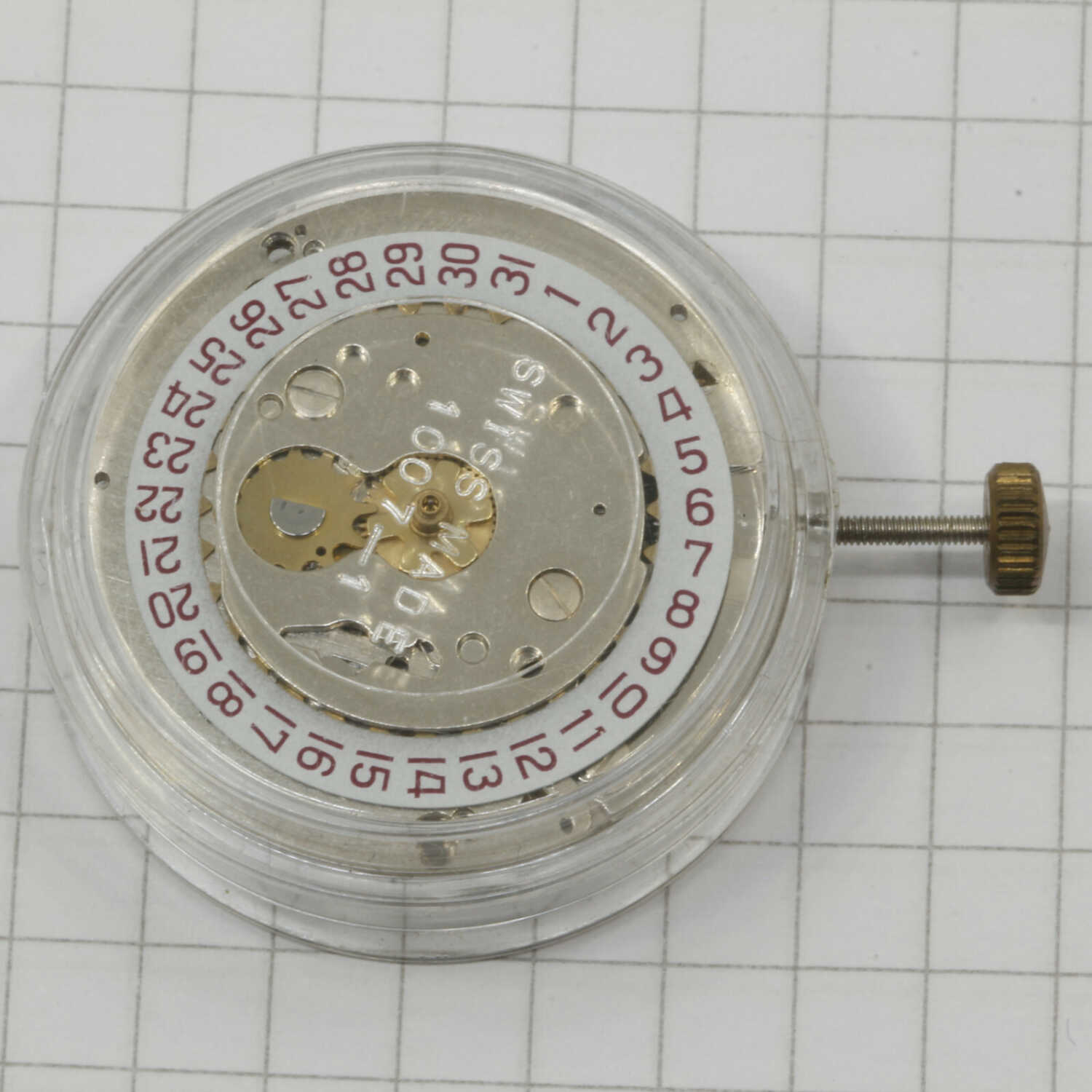

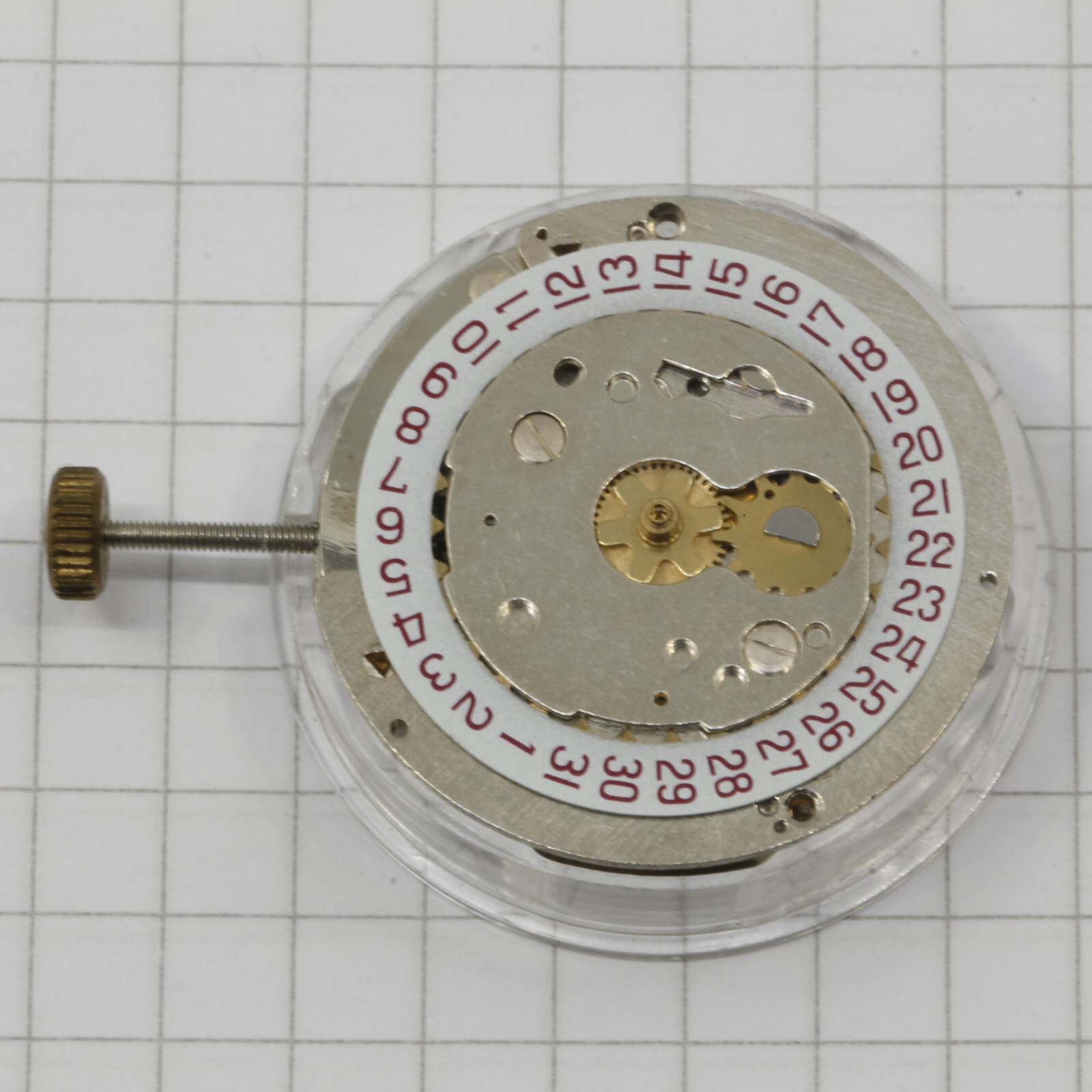

Shock Protected / Quick date adjustment

Pin lever

17 Jewels, 21600 A/h, from 70’s

almost impossible to find

it comes in original plastic box

some useful information from web (from ranfft website),

but they have not been checked for correctness :
Dm= 26.6mm, Do= 27.0mm
F= 0.65mm
T= 1.9mm

Do outer diameter, thus the largest. Most movements have a flange a little bigger than Dm,

to rest on the case band or mounting frame.

Dm mounting diameter. With this diameter the movement fits into the aperture of the case or mounting frame
F mounting height, distance between dial plane* and mounting flange.

T stem height, distance between dial plane* and stem center

*) Movements with display discs on the dial side (e.g. calendar)  have occasionally no dial support.

In this case the surface of the discs is taken as reference plane for H, F, and T.

If a not permanently fixed dial spacer is supplied with the movement. its additional height is mentioned.

Hands
1.50 x 0.90 x 0.20mm

Due to the long storage time, small traces may have formed on the movement, but this has no effect on the function.

Because the movement almost 50 years old is, it have to be serviced before installation

a fine adjustment might be necessary.
